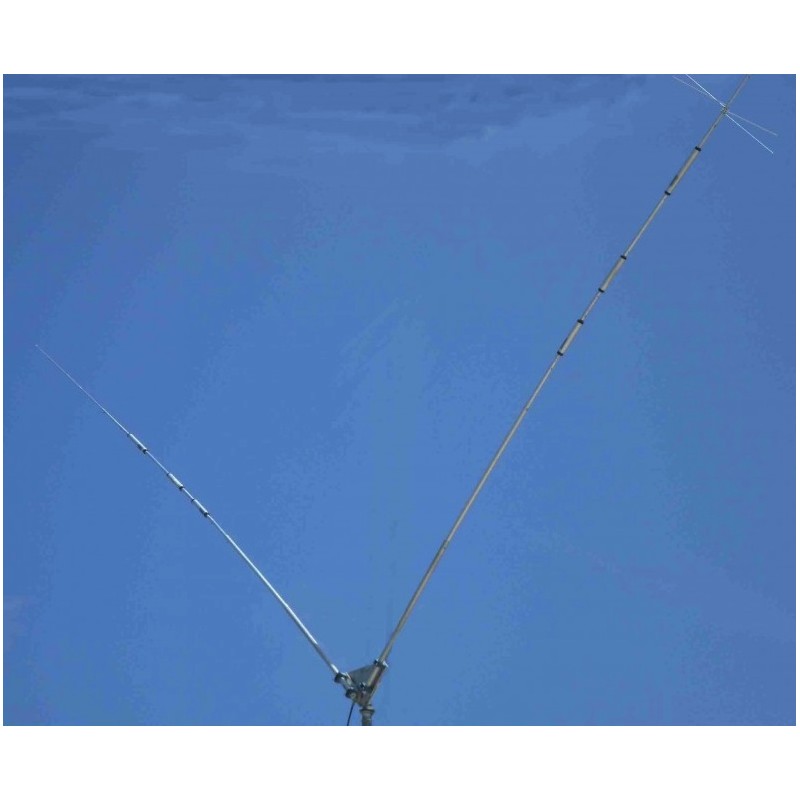

Prosistel PST-1524TV Trapped multiband dipole 10-15-20-40m, in V configuration, omnidirectional
Product Code: JUNrF6Q
Rating: Be the first to write a review
Brand: Pro.sis.tel
Weight: 8000.0g
Product Condition: New
PST-1524TV

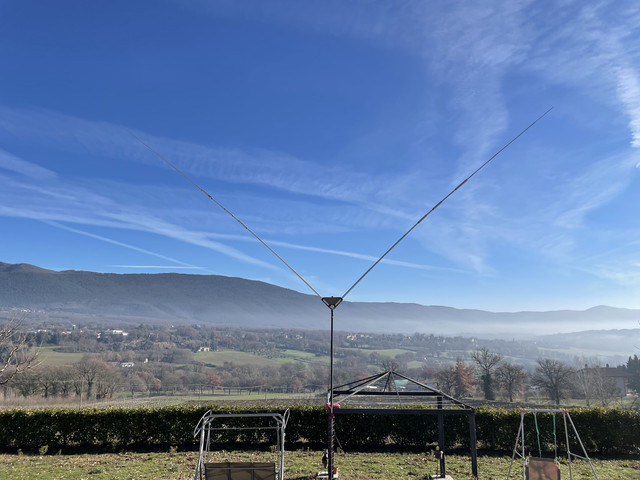

- Trapped multiband dipole 10-15-20-40m, in V configuration, omnidirectional.
- 2KW pep
- Arm length : 6m, projection on the ground 4m per arm
- Mounts on poles of :
- 40 to 50mm;
- 60mm optional.
- Suggested height at least 5m, but works well even at 2m.
- The antenna does not require bracing.
- Weight 12Kg
- Balun optional
GENERAL SPECIFICATIONS:
- Gain: 0 dBd;
- Impedance : 50 ohm;
- VSWR : <1:1.5 band ends within 1:1.8;
- Rotation radius : from approximately 3 to 4m depending on the version;
- Weight : approximately 6-8kg;
- Accepts mast : 48mm (standard) or 60mm (optional);
- Material : AL6060T6, stainless steel bolts.
PROSISTEL - PST-1524TV - TRAPPED MULTI-BAND DIPOLE FOR 10-15-20-40 METERS IN A "V" CONFIGURATION
Very robust construction, with stainless steel hardware.

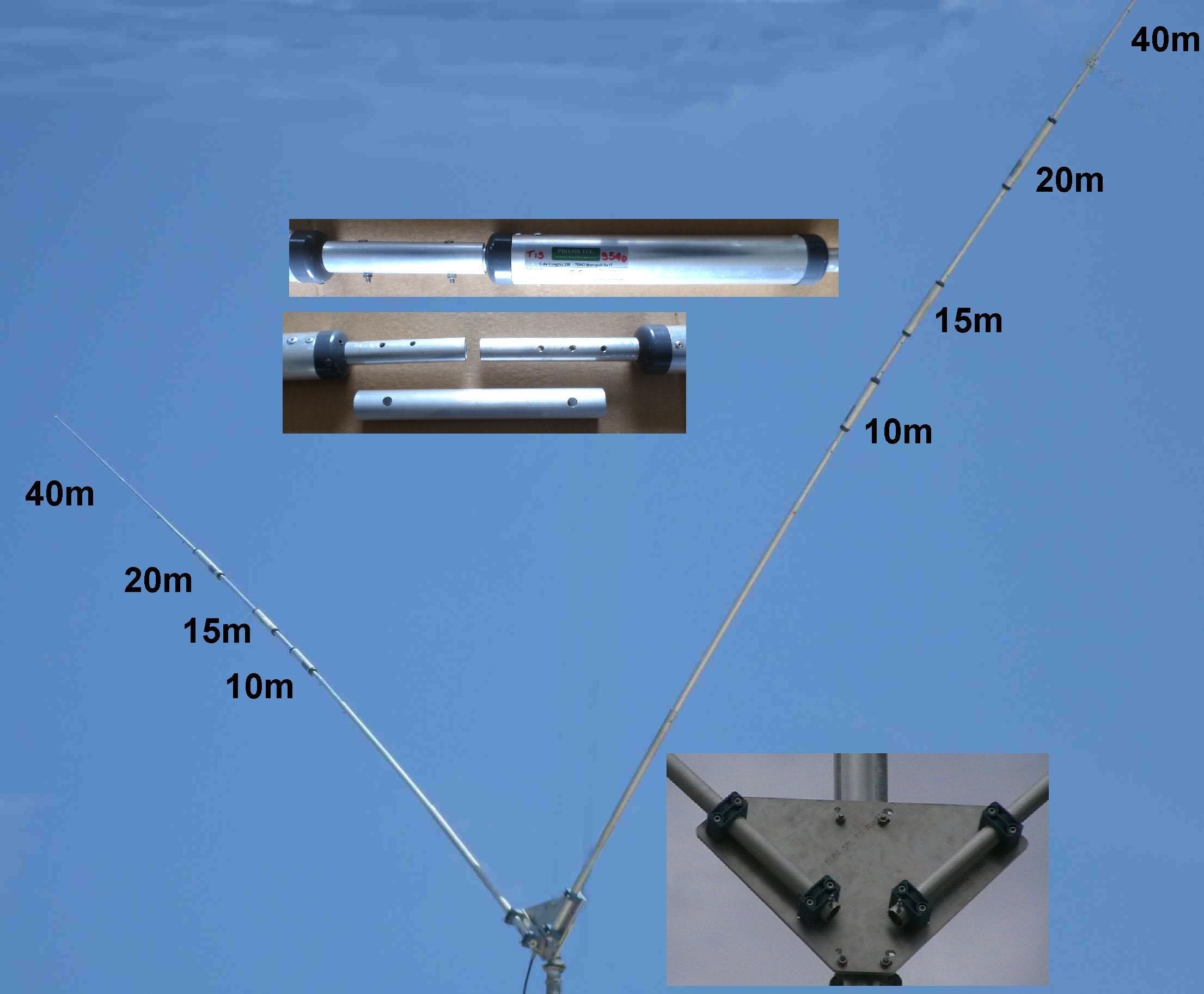

The traps are made with high insulation copper wire wound on fiberglass supports, and allow use of powers up to 2 kW p.e.p. SSB.
TECHNICAL FEATURES:
APPLICABLE POWER: 2 kW p.e.p.
Arms length: 6 m, projection on the ground 4 m per arm
Standard mounting on masts from 40 to 50 mm, or 60 mm optional
Suggested ground clearance at least 5 m, but works well even at 2 m
The antenna does not require guying
Weight: 12 kg
