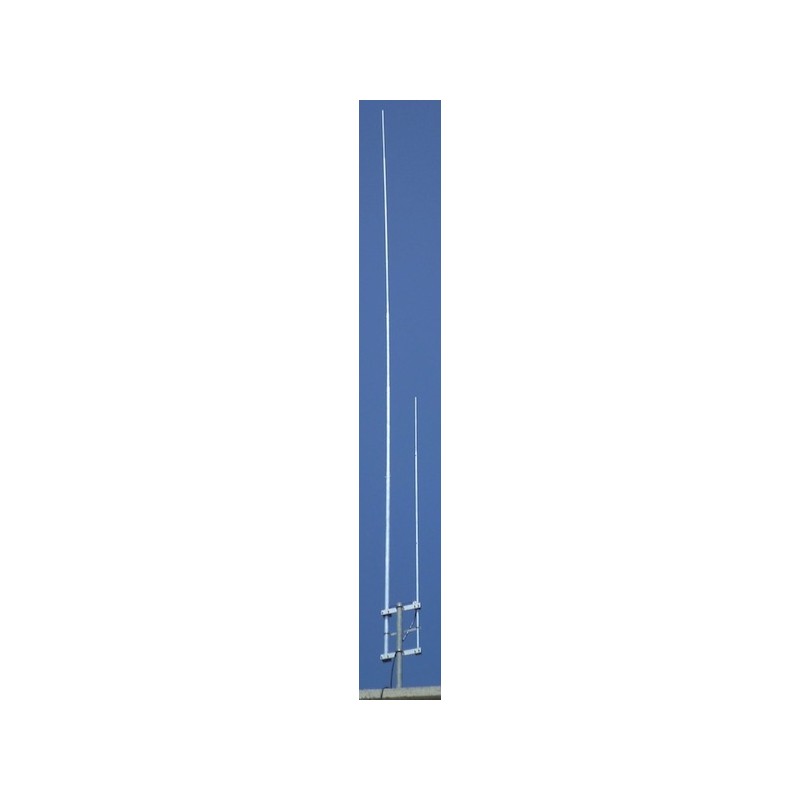

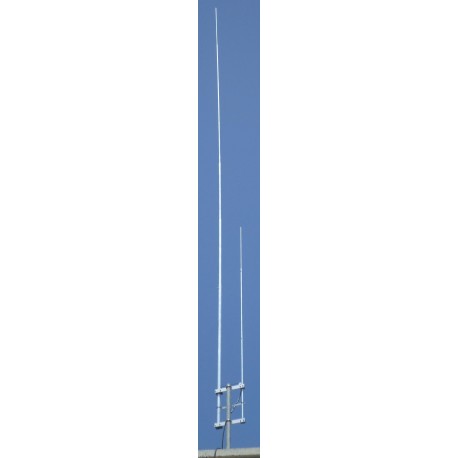

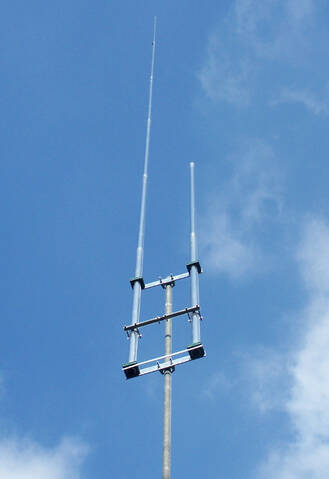

Prosistel PST-1011J Vertical J-pole antenna for 10-11m

PST-1011J


Vertical J-pole antenna for 10-11m

5KW pep;

S0239 connector

TECHNICAL SPECIFICATIONS:

Height: approximately 8.5m

Weight = 5Kg

Wind area = 0.15m2

Max wind = 130km/h

Accepts mast: 40-50mm (60mm on request)

6060T6 aluminium, stainless steel bracket and bolts.

PROSISTEL - PST-1011J - J-POLE TYPE ANTENNA TUNABLE FROM 27 TO 30 MHz - DOES NOT REQUIRE A GROUND PLANE - EXTREMELY EFFICIENT

PROSISTEL offers a selection of OMNIDIRECTIONAL stand-alone vertical antennas, built with the well-known J-POLE tecnique.

These antennas will provide outstanding performance withouth the need of a ground plane.

The PST-1011J will give 5 dB more gain than a simple quarter wave ground plane antenna.

ELECTRICAL CHARACTERISTICS

• Bandwidth : 27-30 MHz (10-11 METRI)
• Gain: 5db/ground plane
• VSWR: 1.5:1
• Feed Impedance: 50 OHM
• Applicable power: 5 kW p.e.p. MAX.
• Connector: SO-239 (per PL-259)

MECHANICAL CHARACTERISTICS

• Element Lenght: 27,88 ft. (8.5 m) approx.
• Weight: 11 lbs. approx.
• Mast: 2 in. O.D. max. (40-50 cm)
• Wind area: 0.15 mq
• Wind survival: 130 km/h
• Aluminum 6060T6, stainless steel hardware
