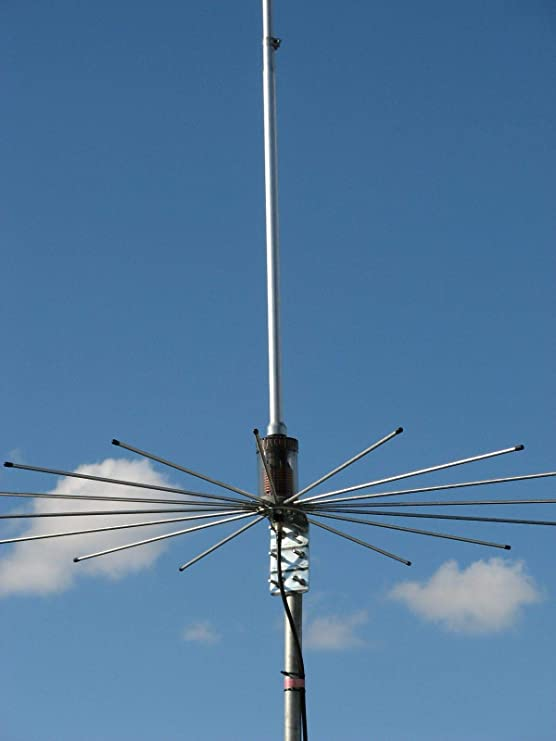

base cb antenna Sirio 2016
Product Code: YNE1rmW
Rating: Be the first to write a review
Brand: Sirio antennas
Weight: 8000.0g
Product Condition: New
(Notify me when product is back in stock)
Key Features/Specifications:
High Power handling Capability
Low Radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped with waterproof jointing sleeve
Equipped with excellent multi element ground plane
Protection from static discharges DC-Ground
Made of aluminium alloy 6063 T-832
Type: 5/8λ ground plane
Frequency range: tunable from 26.4 to 28.2 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.3 dBd, 3.45 dBi
Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz
SWR @ res. freq.: ≤ 1.1
Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Materials: Aluminium, Copper, Nylon
High Power handling Capability
Low Radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped with waterproof jointing sleeve
Equipped with excellent multi element ground plane
Protection from static discharges DC-Ground
Made of aluminium alloy 6063 T-832
Type: 5/8λ ground plane
Frequency range: tunable from 26.4 to 28.2 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.3 dBd, 3.45 dBi
Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz
SWR @ res. freq.: ≤ 1.1
Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Materials: Aluminium, Copper, Nylon
